Yangzhou Huayu Cable Co., Ltd. is one of the leading manufacturers and suppliers of H03VV-F PVC Insulated Flexible Wire in China. If you're going to wholesale CE approved H03VV-F PVC Insulated Flexible Wire, welcome to get free sample from our factory. All customized cables are with high quality and low price.

Product Description

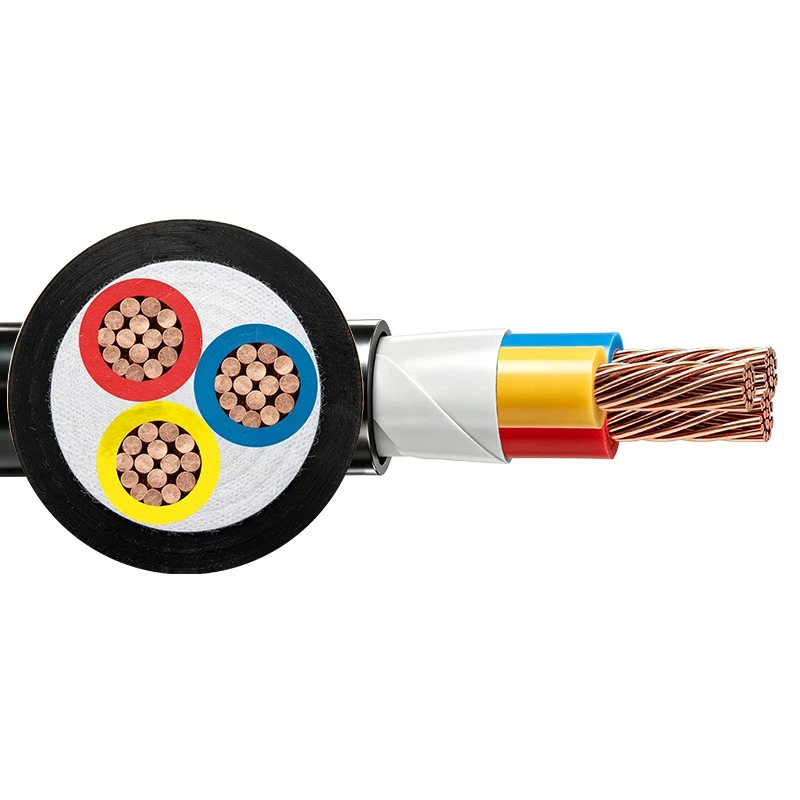

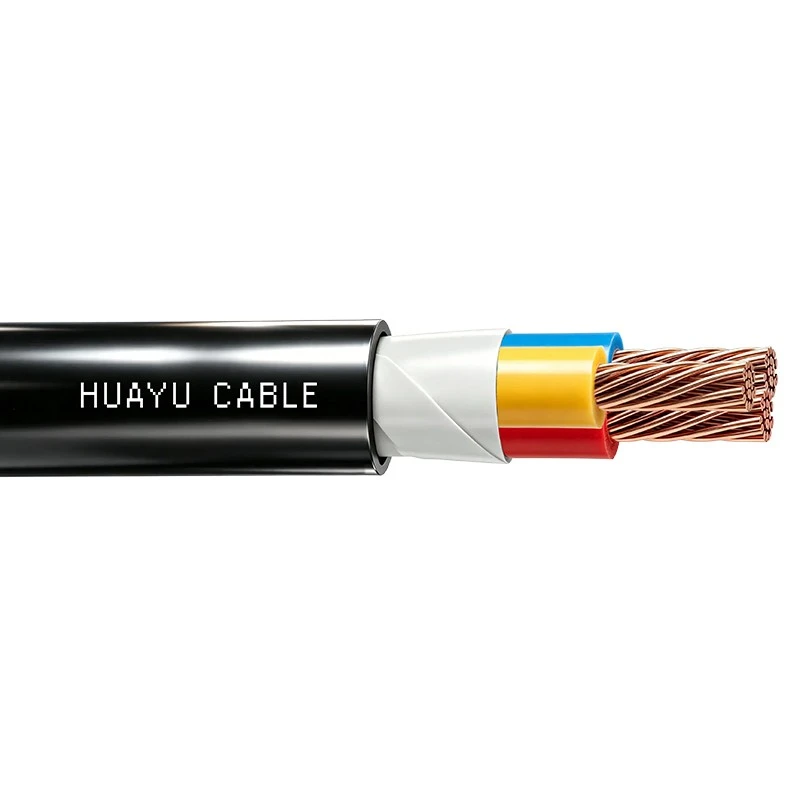

H03VV-F is a lightweight, 300/300V, PVC-insulated and PVC-sheathed, flexible copper conductor multi-core cable conforming to the EU harmonized standard (HAR), designed for indoor use with low mechanical stress, low power applications, and light-duty mobile or fixed wiring.

Application

It is applied to low-pressure, low-power and lightly stressed electrical connections in indoor conditions. It is mostly used in home lighting, small appliances, office equipment, weak current and general control circuits. It is only suitable for indoor use and is not compatible with outdoor, high-temperature, heavy-load and industrial scenarios.

Product Feature

Rated voltage	300/300V
Conductor	Annealed copper conductor
Insulation	PVC
Sheath	PVC
Standard	EN 50525-2-11:2011
Normal working temperature	70°C

Packing & Delivery

We deliver bespoke professional packaging solutions encompassing standard cable reels, cartons and pallets to guarantee seamless product shipment. Every individual roll is affixed with complete specification markings to facilitate straightforward installation and application, while custom-tailored packaging options are offered to accommodate both ocean and air freight requirements.

FAQ

Q: What kind of cable is H03VV-F?

A: EU Harmonized AR certification for lightweight multi-core flexible cables, PVC insulation + PVC sheath, Class 5 flexible copper conductors, excellent flexibility, specially designed for indoor light-load electrical connections.

Q: Can the products exported to the EU be equipped with this cable?

A: OK. The product complies with the CE and ROHS requirements, and can be used normally in domestic indoor small-power civilian equipment within the European Union.

Q: Can H03VV-F be used outdoors?

A: No. These cables do not have the ability to resist ultraviolet rays or weathering. They are prohibited for outdoor, open-air, buried, or wall-penetrating installations.
For indoor use only. It is suitable for low-voltage, low-power, and low-mechanical-load electrical connections. Commonly used in household lighting, small appliances, office equipment, weak current circuits, and ordinary control circuits.

Q: Rated voltage and operating temperature?

A: Rated voltage: 300/300V; Long-term operating temperature: ≤70℃; Fixed installation environment: -40℃ to 70℃; Mobile use minimum ambient temperature: -5℃.
