Name: China Low Voltage H07V-R PVC Insulated Flexible Wire Manufacturers Suppliers Factory - Huayu Cable
Brand: Huayu Cable
SKU: 310915018

Yangzhou Huayu Cable Co., Ltd. is one of the leading manufacturers and suppliers of low voltage h07v-r pvc insulated flexible wire in China. If you're going to wholesale CE approved low voltage h07v-r pvc insulated flexible wire, welcome to get free sample from our factory. All customized cables are with high quality and low price.

Product Description

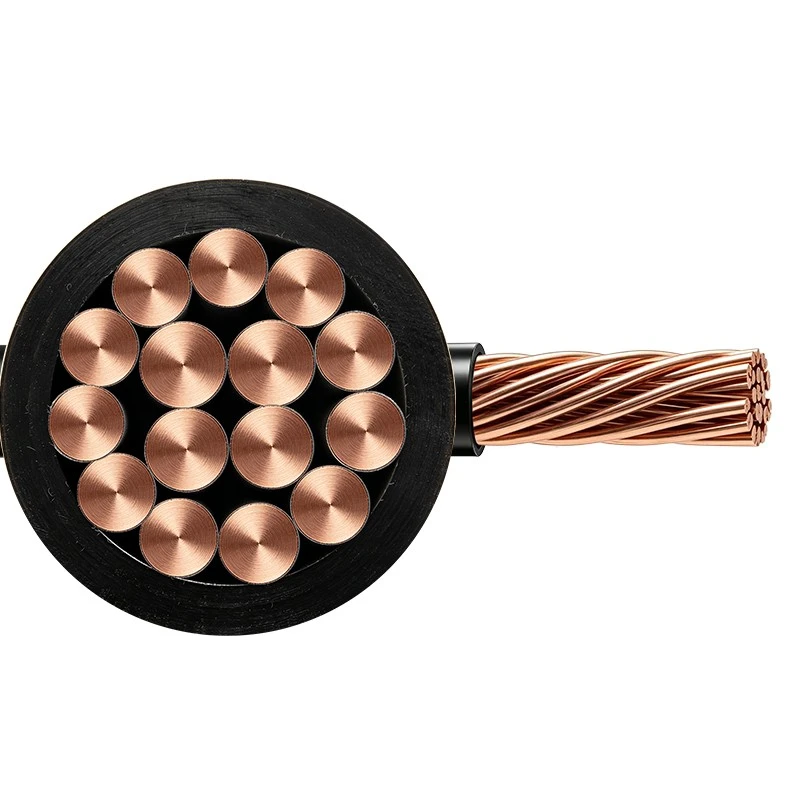

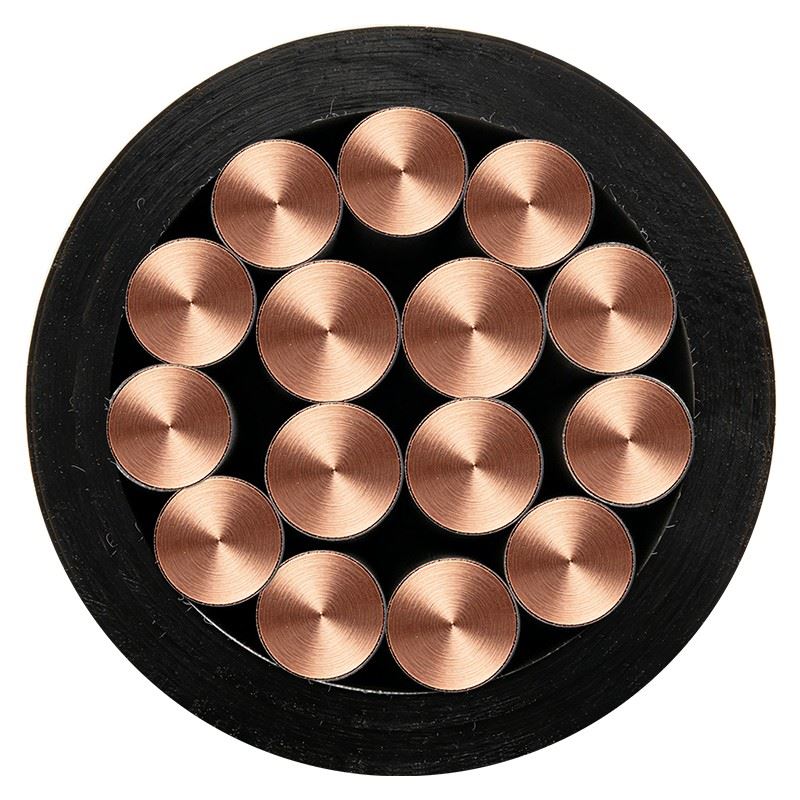

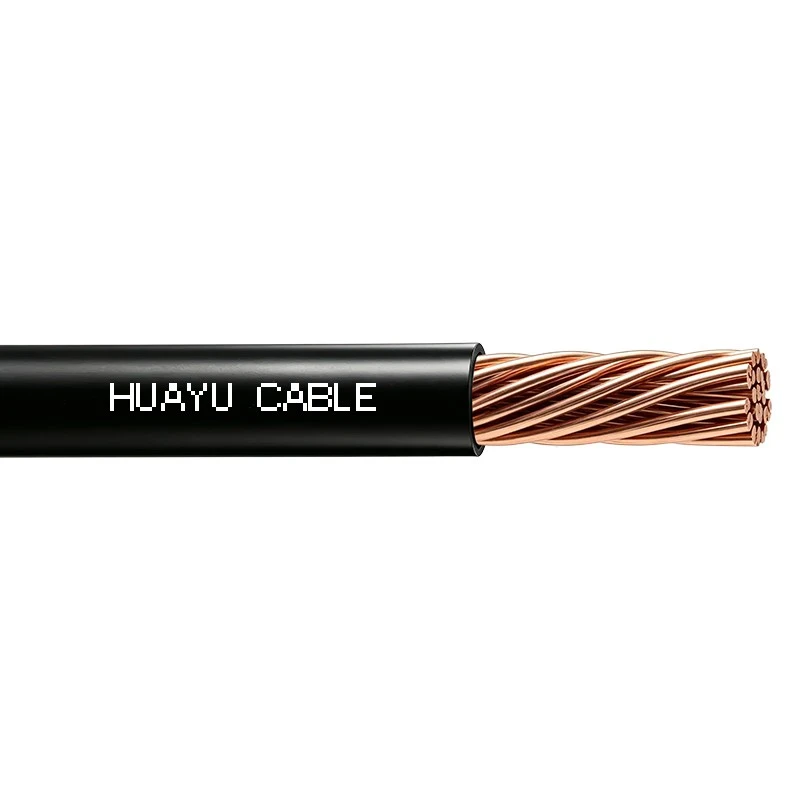

H07V-R is a single-core flexible wire. The conductor is made by twisting multiple thin copper wires together, and it has good flexibility. This wire is usually insulated with polyvinyl chloride and has a working temperature range of -15℃ to 70℃. It is suitable for both dry and humid indoor environments. Its flexibility makes it particularly suitable for situations where frequent bending or movement is required.

Application

Internal wiring of electrical equipment: Commonly used for internal connections in control cabinets, distribution boxes, etc.
Lighting system: Suitable for the fixed installation and connection of lamps
Industrial equipment: Widely used for power connections in various industrial machinery
Building electrical installation: Suitable for fixed wiring within buildings

Product Feature

Rated voltage	450/750V
Conductor	Bare Copper
Insulation	Polyvinyl Chloride(PVC) Insulation
Standard	EN 50525-2-11:2011
Normal working temperature	70°C

Packing & Delivery

We deliver bespoke professional packaging solutions encompassing standard cable reels, cartons and pallets to guarantee seamless product shipment. Every individual roll is affixed with complete specification markings to facilitate straightforward installation and application, while custom-tailored packaging options are offered to accommodate both ocean and air freight requirements.

FAQ

Q: What are the rated voltage and the long-term operating temperature?

A: The rated voltage is 450/750V. The long-term maximum temperature for the conductors is 70℃.

Q: Can it be used outdoors in an open area?

A: It is not recommended to use it without protection in an open area. Ordinary PVC insulation is not resistant to ultraviolet rays and will age and crack over time with prolonged exposure to the sun. If it must be used outdoors, a UV-protective line trough / pipe needs to be installed to shield it, and it cannot be directly laid bare.

Q: Can it be directly buried or submerged?

A: No. Without a sheath, the PVC's moisture-proof ability is limited. It cannot be directly buried, submerged, or used in environments with long-term dampness and water accumulation; for underground use, cables with sheaths and waterproof structures should be selected.

Q: What colors are available?

A: Standard colors: Brown, Blue, Black, Grey, Red, White, Yellow-Green (for grounding), and other colors can be customized according to the order.

Q: Which scenarios are applicable and which are not?

A: Applicable: Indoor conduits / troughs, inside distribution boxes / control cabinets for wiring, building lighting and power circuits, protected laying in dry / moderately humid environments;

Not applicable: Open-air exposed, directly buried, underwater, continuously moving, highly corrosive / high-temperature special environments.
