H05VVH2H8- F PVC Insulated Flexible Installation Cable

Send Inquiry
H05VVH2H8- F PVC Insulated Flexible Installation Cable
Details
Application:
Model H05VVH2H8-F is a flat spiral (spring-type) cable complying with European standards. It is manufactured from flat conductors to form a permanent spiral structure, with a rated voltage of 300/500 V, and is specially designed for applications requiring frequent extension and retraction.

Standard:
European Standard: EN 50525-2-11:2011

Construction:
Conductor: Annealed copper conductor
Insulation: PVC insulated
Category
Installation Cable
Share to

Yangzhou Huayu Cable Co., Ltd. is one of the leading manufacturers and suppliers of h05vvh2h8- f pvc insulated flexible installation cable in China. If you're going to wholesale CE approved h05vvh2h8- f pvc insulated flexible installation cable, welcome to get free sample from our factory. All customized cables are with high quality and low price.



Product Description

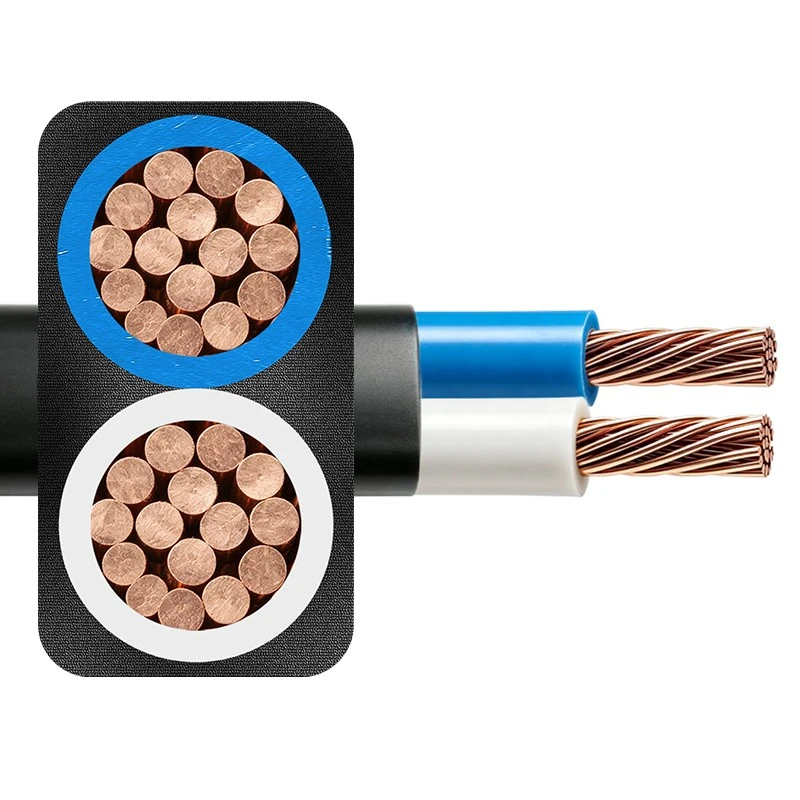

H05VVH2H8-F is a 300/500V 2-core flat flexible cable with Class 5 bare/tinned copper conductors and PVC insulation/sheath, tested at 2000V. It has a minimum bending radius of 7.5×OD for moving installation and 4×OD for fixed installation, operating at -5℃~+70℃ in dynamic service and -40℃~+70℃ statically, compliant with IEC 60332-1-2 flame retardancy and RoHS for frequent telescopic applications.



Application



For indoor dry or damp environments with moderate mechanical stress, where frequent slight movement or storage is required; one of the standard power cords for electrical appliances exported to Europe.



Product Feature



Rated voltage 300/500V
Conductor High-quality oxygen-free copper
Insulation PVC
Sheath PVC (if applicable)
Standard EN 50525-2-11:2011
Operating temperature for dynamic/moving installation -5℃ to +70℃
Operating temperature for static/fixed installation

-40℃ to +70℃
Short circuit (maximum duration: 5 seconds) Not exceeding 160°C



Packing & Delivery



We provide professional packaging solutions, including standard cable reels, cartons or pallets, to ensure smooth product delivery. Each roll is labeled with full specification details for easy installation and use. Customized packaging is available for both sea and air transportation.

product-738-647



FAQ



Q: What is H05VVH2H8-F - PVC insulated flexible installation wires?

A: H05VVH2H8-F is a 300/500V PVC-insulated extendable flat spiral flexible cable complying with European harmonized standards, specially designed for movable electrical connections requiring frequent stretching and resetting with flat structure.

Q: Unsuitable applications?

A: Not suitable for high-temperature radiation areas, continuous high-frequency reciprocating cable chain operation, direct outdoor burial/long-term sunlight exposure, high mechanical impact, or harsh industrial environments requiring oil and chemical resistance.

Q: What is the service life of PVC insulated flexible wire?

A: Its service life generally reaches 10–20 years under static or occasional movement conditions, while it will be greatly shortened (possibly only several years) when used in high-frequency cable chain, high-temperature or outdoor UV exposure environments.

Q: What is the minimum bending radius for PVC insulated flexible wire?

A: For dynamic use, the minimum bending radius shall be ≥10–15 times the outer diameter; for static use, ≥4 times. Too small a bend will damage the spiral structure.
