Yangzhou Huayu Cable Co., Ltd. is one of the leading manufacturers and suppliers of low voltage h05vvc04v5-k pvc insulated flexible installation cable in China. If you're going to wholesale CE approved low voltage h05vvc04v5-k pvc insulated flexible installation cable, welcome to get free sample from our factory. All customized cables are with high quality and low price.

Product Description

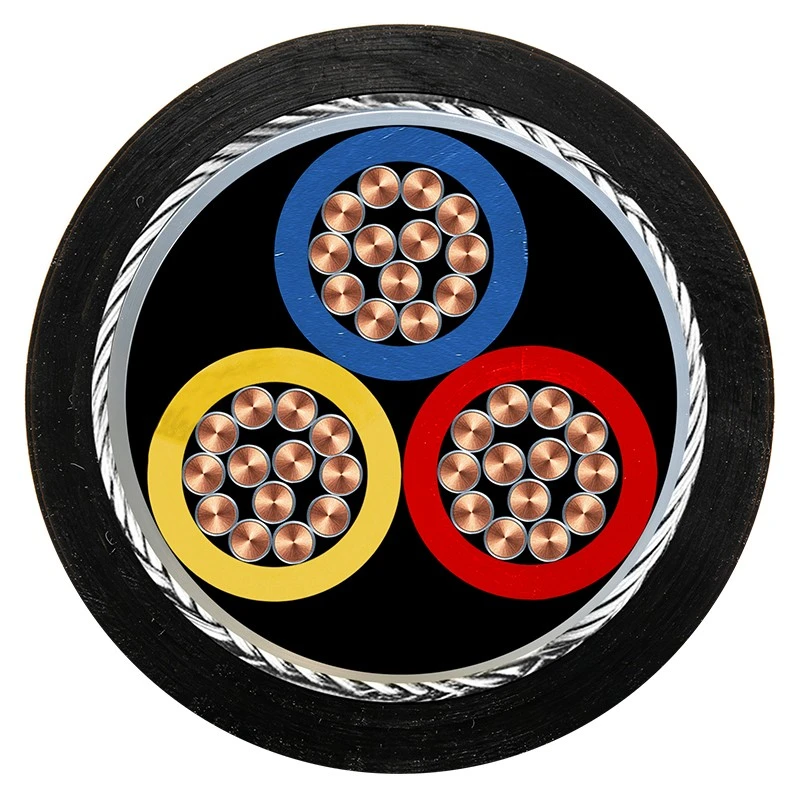

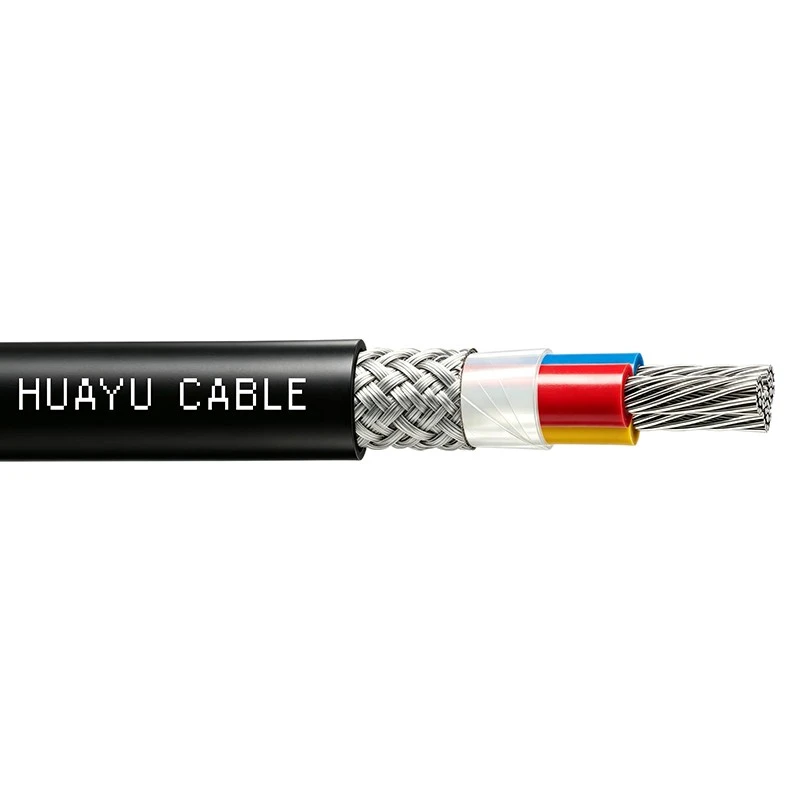

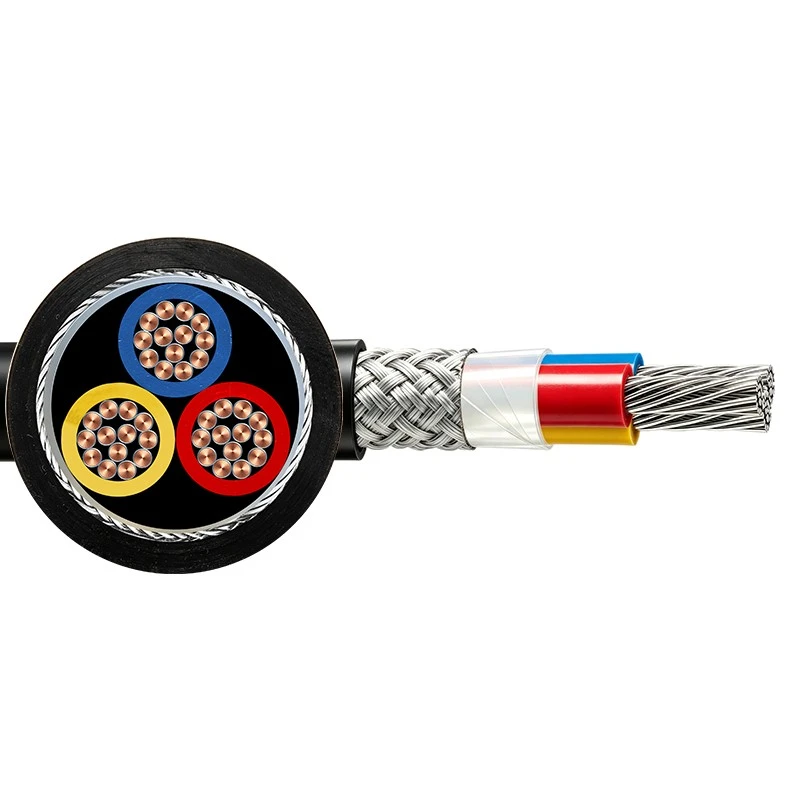

The cable adopts fine-stranded oxygen-free copper conductors to VDE 0295 Class 5 with excellent flexibility. Core insulation is special PVC, marked with white numbers on black base; 3-core & above cables include yellow-green PE conductor. Tinned copper braid shield (80–85% coverage) suppresses EMI and stray signals. Construction: PVC inner sheath + oil-resistant PVC outer sheath, oil resistant and flame retardant. Transparent sheath is optional.

Application

Suitable for dry or damp indoor installation, not for outdoor exposure. It is a screened connection cable for control, measurement and signal technology, deployed in industrial plants, machinery, machine tools and material handling systems. Ideal for equipment requiring high EMC performance such as inverter cabinets and PLC modules sensitive to signal interference.

Product Feature

Rated voltage	300/500V
Conductor	High-quality oxygen-free copper
Insulation	PVC
Sheath	PVC (if applicable)
Standard	EN 50525-2-11:2011
Normal working temperature	-40℃~+70℃ for fixed installation; -5℃~ +70℃ for flexible application
Short circuit (maximum duration: 5 seconds)	Not exceeding 150°C

Packing & Delivery

We deliver bespoke professional packaging solutions encompassing standard cable reels, cartons and pallets to guarantee seamless product shipment. Every individual roll is affixed with complete specification markings to facilitate straightforward installation and application, while custom-tailored packaging options are offered to accommodate both ocean and air freight requirements.

FAQ

Q: Unsuitable applications?

A: Not for cable chains or continuous high-frequency bending, only occasional flexing. Indoor use only; PVC sheath has poor weather resistance, long-term outdoor exposure prohibited. Not suitable for heavy mechanical stress or forced routing. Max long-term operating temperature approx. +70°C(+80°C for some brands). Keep away from heat sources and do not exceed rated temperature. Minimum bending radius for moving installation up to 15×OD; repeated bending in tight spaces risks cable damage.

Q: What is the service life of H05VVC0405-K ?

A: Cable service life is greatly affected by factors such as operating environment, bending frequency and load temperature. Some manufacturers have passed a 250,000-cycle bending test (at a bending radius of 3 times the outer diameter), but this does not constitute a universal service life guarantee.

Q: What is the minimum bending radius for H05VVC0405-K?

A: Fixed installation: Typically 4× the cable outer diameter; some manufacturers specify 5× or 6× outer diameter. Mobile installation: Commonly 10×, 12.5× or 15× the cable outer diameter; some manufacturers mark it as 7.5× outer diameter.
