Yangzhou Huayu Cable Co., Ltd. is one of the leading manufacturers and suppliers of low voltage h07v-k pvc insulated flexible wire in China. If you're going to wholesale CE approved low voltage h07v-k pvc insulated flexible wire, welcome to get free sample from our factory. All customized cables are with high quality and low price.

Product Description

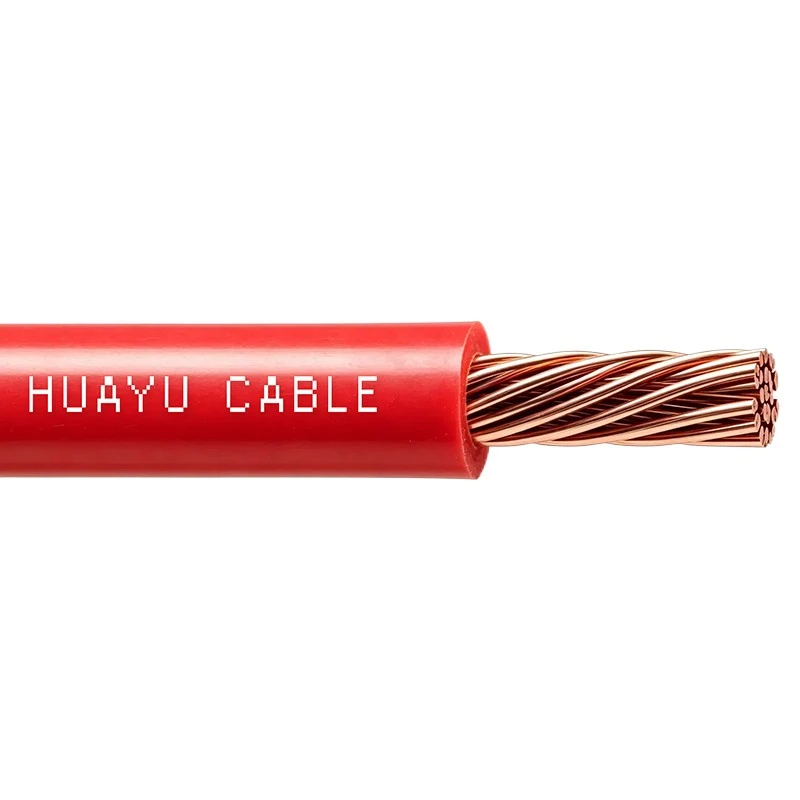

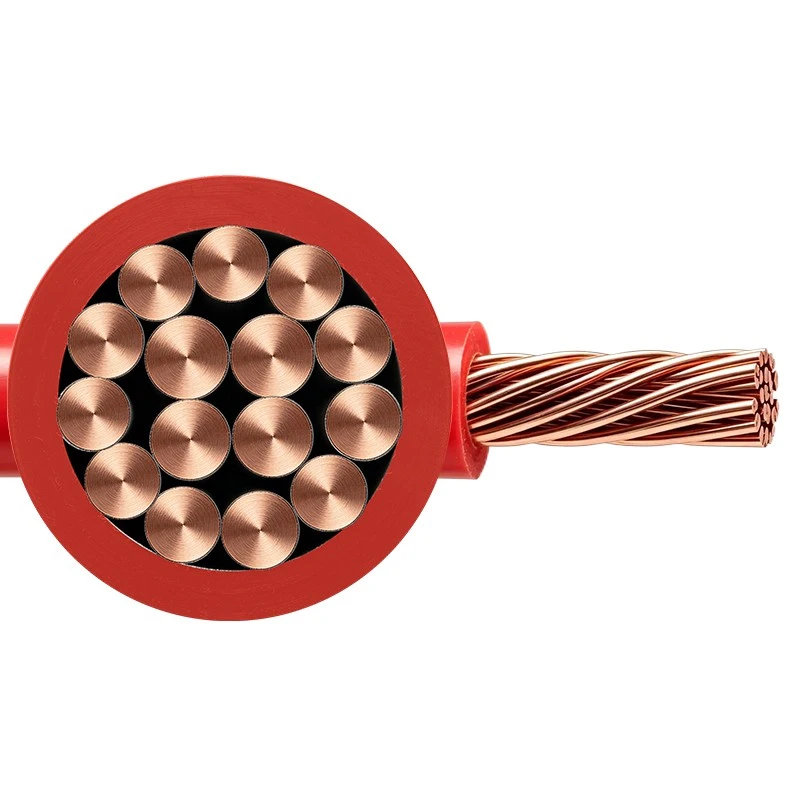

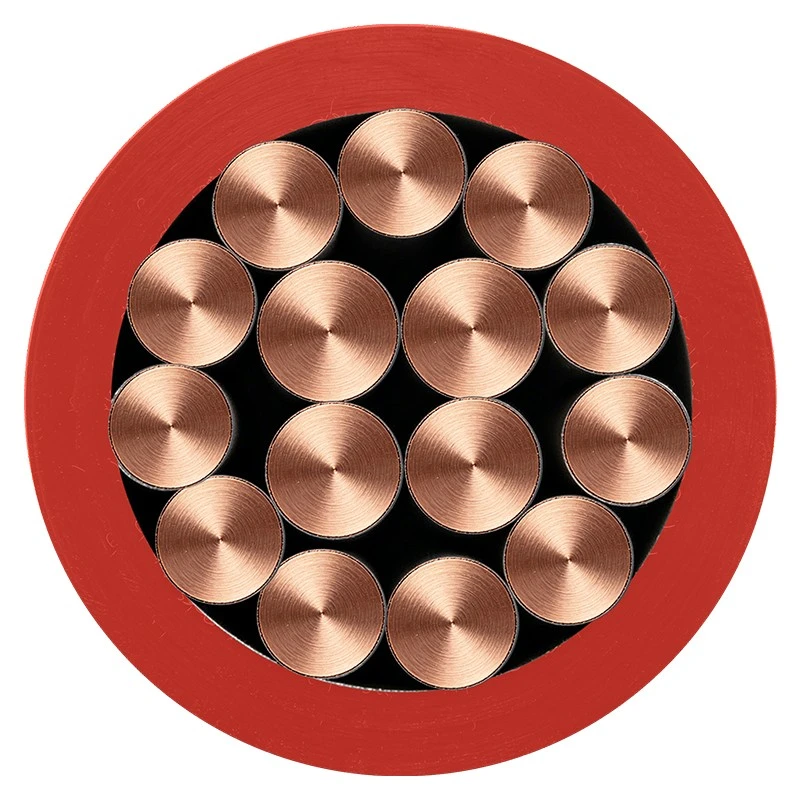

H07V-K is a 450/750V single-core PVC insulated flexible wire. It features a 5th class multi-strand stranded annealed copper conductor. It only has a PVC insulation layer and no outer sheath. The long-term allowable operating temperature is 70℃. It is mainly used for wiring inside control cabinets, for conduit and wire trough installation and fixed wiring. It is suitable for wiring of electrical equipment exported to the EU. It cannot be directly used in the open air without protection.

Application

* Wiring inside cabinets: Power, control, grounding and terminal block connections within the distribution cabinet and frequency converter cabinet. Soft conductors are convenient for bending and crimping terminals.

* Internal wiring of industrial equipment: Fixed power and control connections within machines, automation equipment, transformers, etc.

* Indoor wiring in buildings: Cables are run through pipes or troughs in dry environments, used for lighting and socket circuits. Bare wiring is prohibited.

* Wiring for electrical appliances and lamps: Fixed wiring within household appliances and lamps. Compatible with EU CE/HAR export equipment.

* Grounding and equipotential bonding: Equipment protection grounding and equipotential connection.

Product Feature

Rated voltage	450/750V
Conductor	Bare Copper
Insulation	Polyvinyl Chloride (PVC) Insulation
Standard	EN 50525-2-11:2011
Normal working temperature	70°C

Packing & Delivery

We deliver bespoke professional packaging solutions encompassing standard cable reels, cartons and pallets to guarantee seamless product shipment. Every individual roll is affixed with complete specification markings to facilitate straightforward installation and application, while custom-tailored packaging options are offered to accommodate both ocean and air freight requirements.

FAQ

Q:What are the common cross-sectional areas?

A: Common ones include 0.75, 1, 1.5, 2.5, 4, 6, 10, 16, 25, 35, 50, 70, 95 mm². The most commonly used in distribution cabinets is 1.5 - 16 mm².

Q: What is the working temperature? Can it be used directly outdoors?

A: The long-term working temperature of the conductor is 70℃. For fixed installation, the temperature range is -30℃ to +80℃, with a minimum temperature of -5℃ for laying. Without a sheath, it is not allowed to be used openly or outdoors. It must be protected mechanically by conduits or cable trays. It is not suitable for occasions with frequent movement and bending.

Q Can H07V-K be buried directly in the wall?

A: It cannot be buried directly in the soil. It must be buried through a protective pipe before being laid in the wall. The cable itself has weak resistance to mechanical impact.

Q: Does H07V-K have an outer sheath? Is it a multi-core cable?

A: It's a single-core wire. It only has a PVC insulation layer and no outer sheath.
