Yangzhou Huayu Cable Co., Ltd. is one of the leading manufacturers and suppliers of low voltage h07v2-k pvc insulated flexible wire in China. If you're going to wholesale CE approved low voltage h07v2-k pvc insulated flexible wire, welcome to get free sample from our factory. All customized cables are with high quality and low price.
Product Description

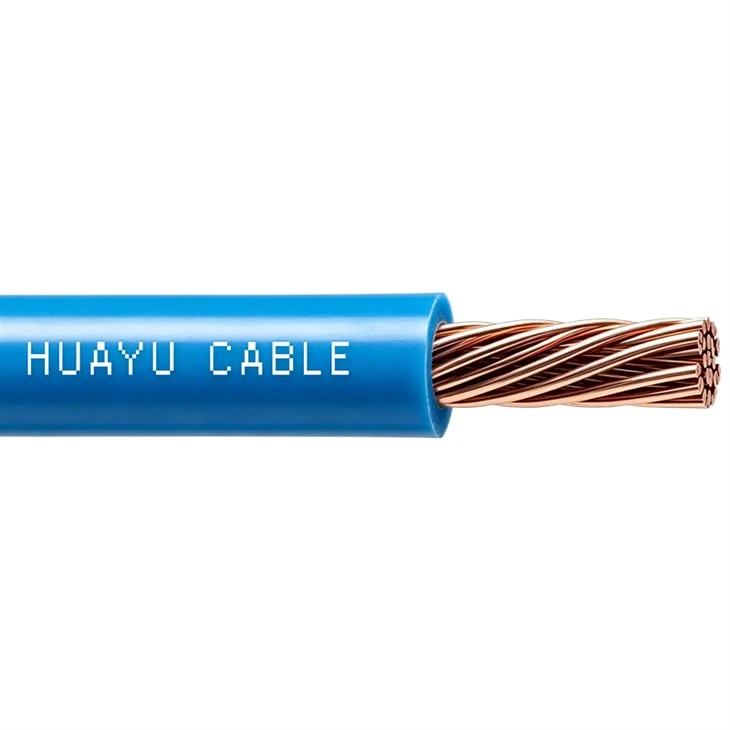

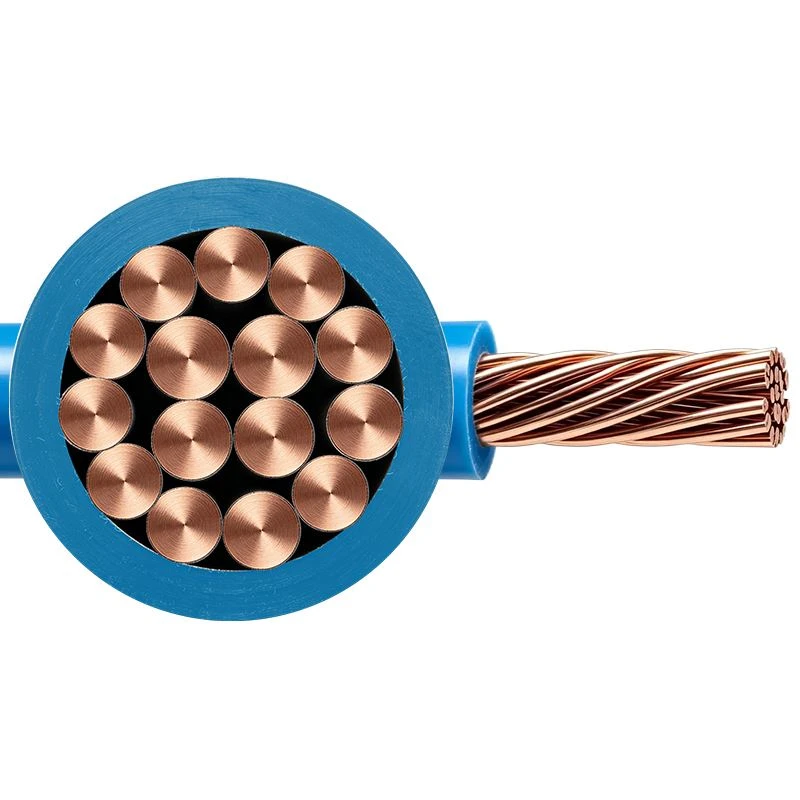

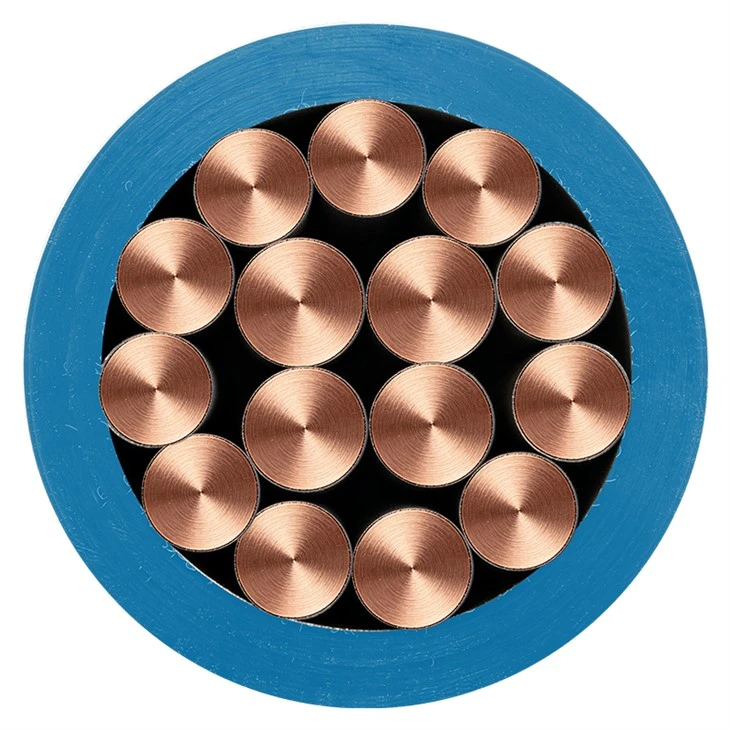

H07V2-K is a HAR/IEC harmonized 450/750V heat-resistant sheath-free single-core flexible cable with IEC 60228 Class 5 fine-stranded bare or tinned copper conductors, 2500V AC test voltage,-40℃~+90℃ for fixed installation and -5℃~ +90℃ for flexible installation, T12 eco-friendly flame-retardant PVC insulation complying with IEC 60332-1, UL VW-1 and CSA FT-1 vertical flame tests, bending radius ≥10×OD for fixed installation and ≥15×OD for flexible installation, VDE 0293 colour coding, intended for internal equipment wiring and conduit installation.
Application
Ideal for cabinet & industrial equipment internal wiring in conduits for EU and North-America; direct exposed installation on passages or platforms not permitted except equipotential bonding.
Product Feature
| Rated voltage | 450/750V |
| Conductor | High-quality oxygen-free copper |
| Insulation | temperature-resistant PVC |
| Sheath | PVC (if applicable) |
| Standard | EN 50525-2-11:2011 |
| Operating temperature | ≤90°C |
| Short circuit (maximum duration: 5 seconds) | Not exceeding 160°C |
Packing & Delivery
We provide professional packaging solutions, including standard cable reels, cartons or pallets, to ensure smooth product delivery. Each roll is labeled with full specification details for easy installation and use. Customized packaging is available for both sea and air transportation.
