Yangzhou Huayu Cable Co., Ltd. is one of the leading manufacturers and suppliers of low voltage h07zz-f lszh flexible installation cable in China. If you're going to wholesale CE approved low voltage h07zz-f lszh flexible installation cable, welcome to get free sample from our factory. All customized cables are with high quality and low price.
Product Description

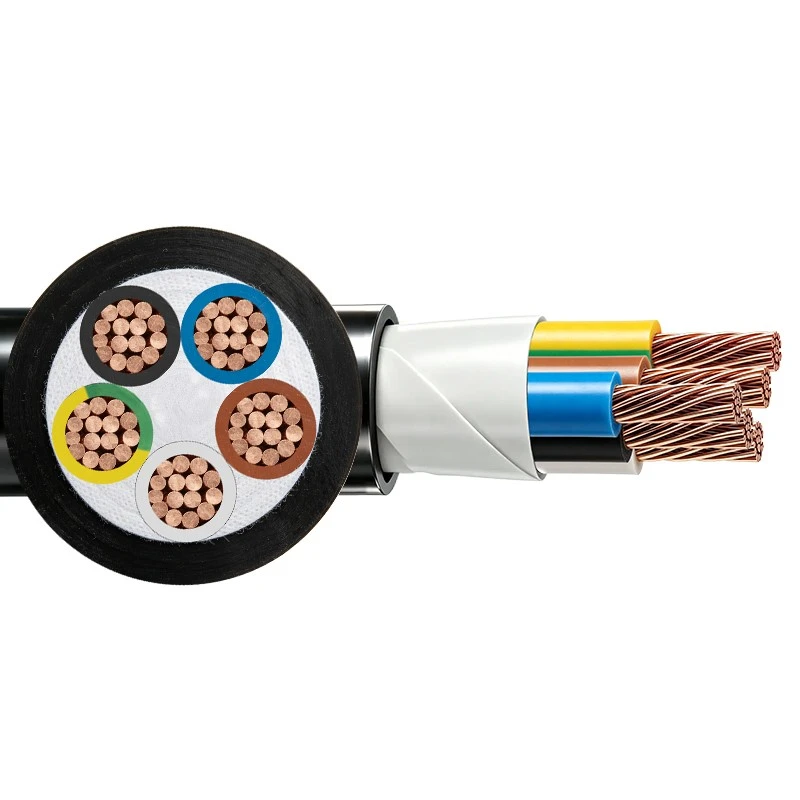

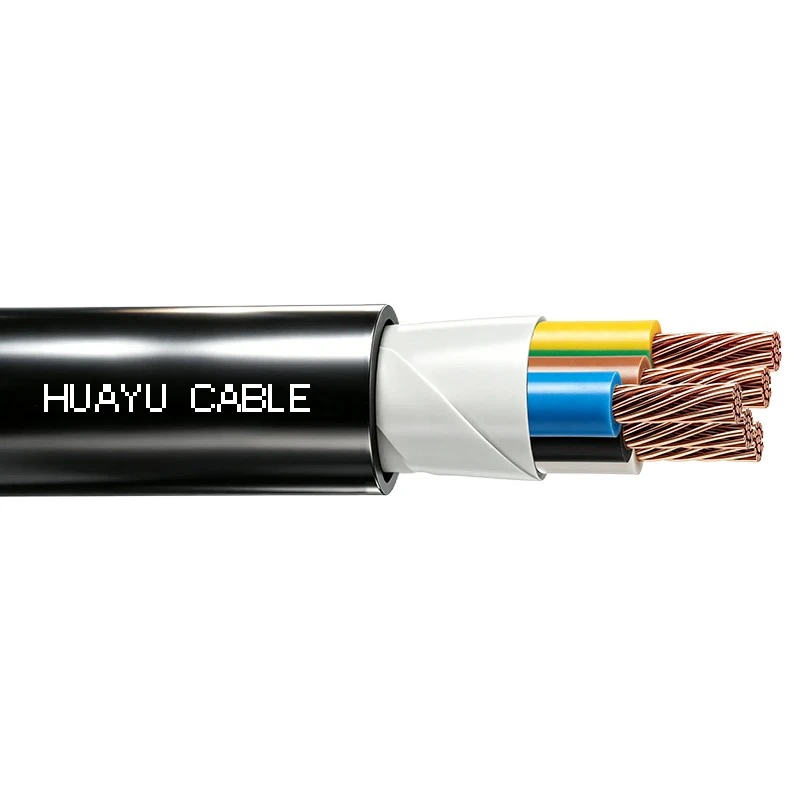

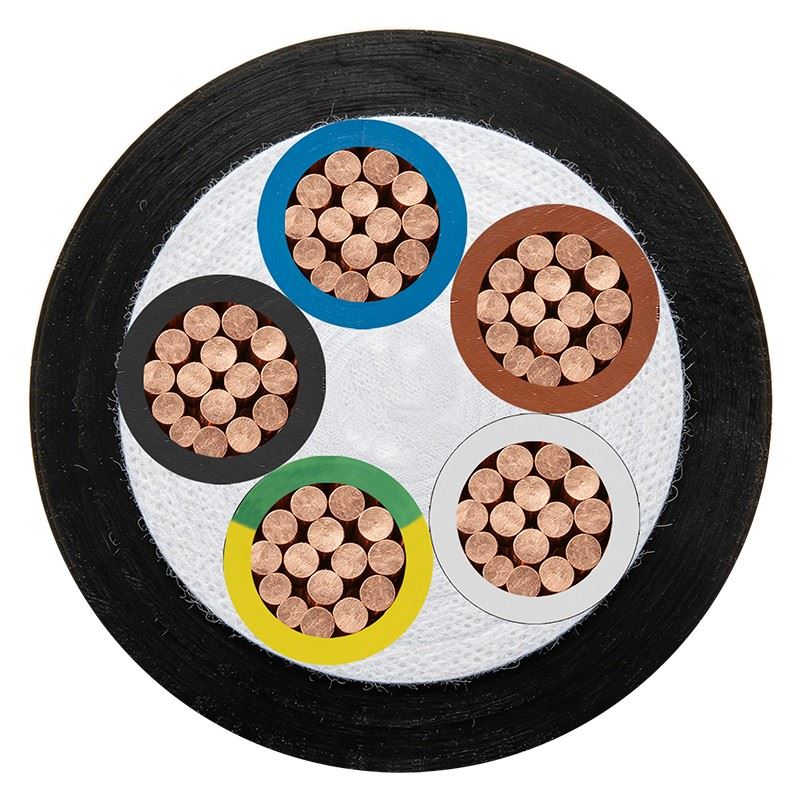

H07ZZ-F, EU HAR compliant 450/750V halogen-free and low-smoke cross-linked elastomer flexible cable, complies with EN50525-3-21. It features Class 5 soft copper conductors, halogen-free cross-linked elastomer insulation, and halogen-free cross-linked elastomer sheath. It is flame-retardant, low-smoke, halogen-free, non-corrosive during combustion, resistant to ozone, capable of withstanding moderate mechanical stress, and suitable for mobile power supply scenarios in indoor mobile devices, stage audio and lighting, UPS, portable equipment, etc., where fire safety is required.
Application
- Stage performance: Stage lighting, sound system, large screen, temporary power supply for performances, power distribution for exhibition booths (priority given to low-smoke and halogen-free for densely populated areas) Lapp Group
- Power supply accessories: UPS uninterruptible power supply, mobile power supply box, portable distribution cabinet, power supply connection lines for mobile units of energy storage Made-in-Ch...
- Industrial portable equipment: Handheld power tools, mobile motors, mobile machinery in workshops, testing equipment, mobile work equipment for automation
- Construction / temporary power supply: Temporary power supply in indoor and sheltered areas (not suitable for long-term exposure to direct sunlight), medium dragging and bending working conditions
- Public venues: Gymnasiums, exhibition halls, theaters, rail transit supporting facilities, etc. (places with high personnel density and high fire safety standards) mobile wiring Lapp Group
- New energy accessories: Internal mobile wiring of wind turbine towers, flexible connections inside energy storage compartments
- Others: Auxiliary lines for ship communication, mobile medical equipment, internal mobile equipment power supply in computer rooms
Product Feature
| Working voltage | 450/750 V |
| Fixed voltage | 600/1000 V |
| Test voltage | 2500 V |
| Dynamic bending radius | 6 x Ø |
| Fixed installation bending radius | 4.0 x Ø |
| Working temperature during application | -5ºC to +70ºC |
| Fixed installation temperature | -40ºC to +70ºC |
| Temperature achievable during short circuit | +250ºC |
| Insulation resistance | 20 MΩ x km |
Packing & Delivery
We deliver bespoke professional packaging solutions encompassing standard cable reels, cartons and pallets to guarantee seamless product shipment. Every individual roll is affixed with complete specification markings to facilitate straightforward installation and application, while custom-tailored packaging options are offered to accommodate both ocean and air freight requirements.
Q: Are you a factory or a trader?
A: We are a professional manufacturer of electrical wires and cables. We can conduct factory inspections.
Q: Can OEM/ODM services be provided?
A: Yes, we support it. We can print the customer's logo, the customer's model number, customize the color of the protective cover, print the text content, and develop according to the sample.
Q: Can we send samples for testing first before placing an order?
A: Yes, we support this. Many export customers usually test the samples first and then place large orders.
Q: What is the rated voltage of H07ZZ-F?
A: 450/750V.
Q: What does LSZH stand for?
A: It means low smoke and low halogen. It refers to materials that have low smoke emission during combustion and do not contain halogens. Moreover, they do not produce toxic and corrosive hydrogen halides during combustion.
