Yangzhou Huayu Cable Co., Ltd. is one of the leading manufacturers and suppliers of low voltage h05z1z1h2-f pvc flexible installation cable in China. If you're going to wholesale CE approved low voltage h05z1z1h2-f pvc flexible installation cable, welcome to get free sample from our factory. All customized cables are with high quality and low price.

Product Description

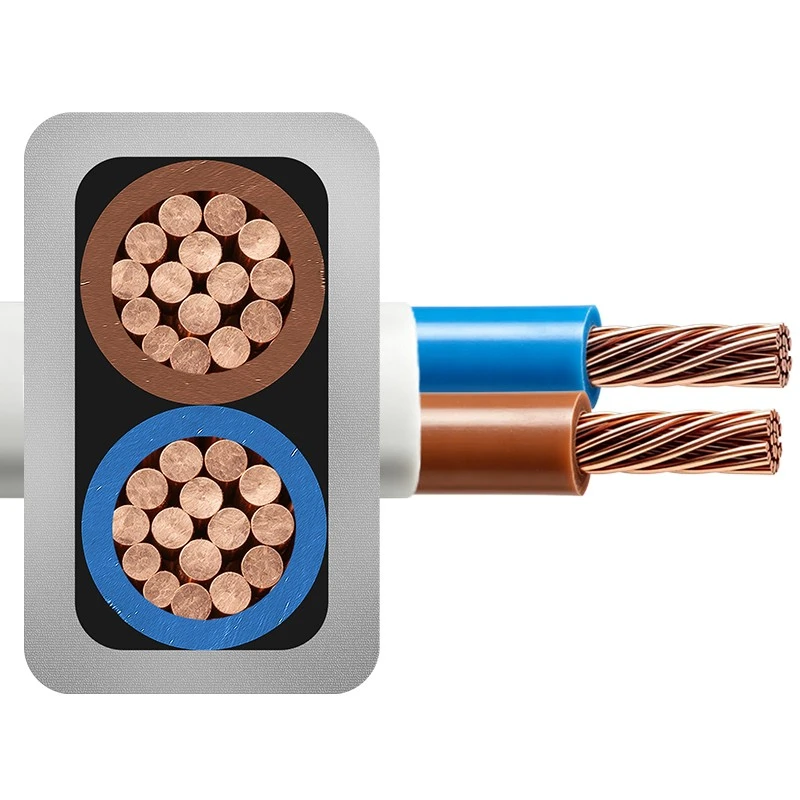

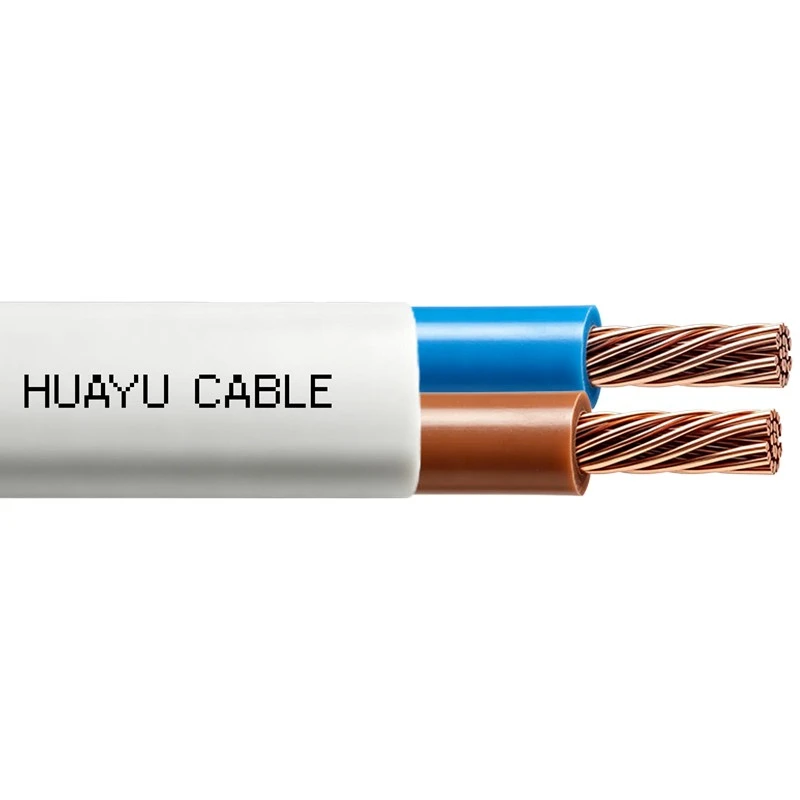

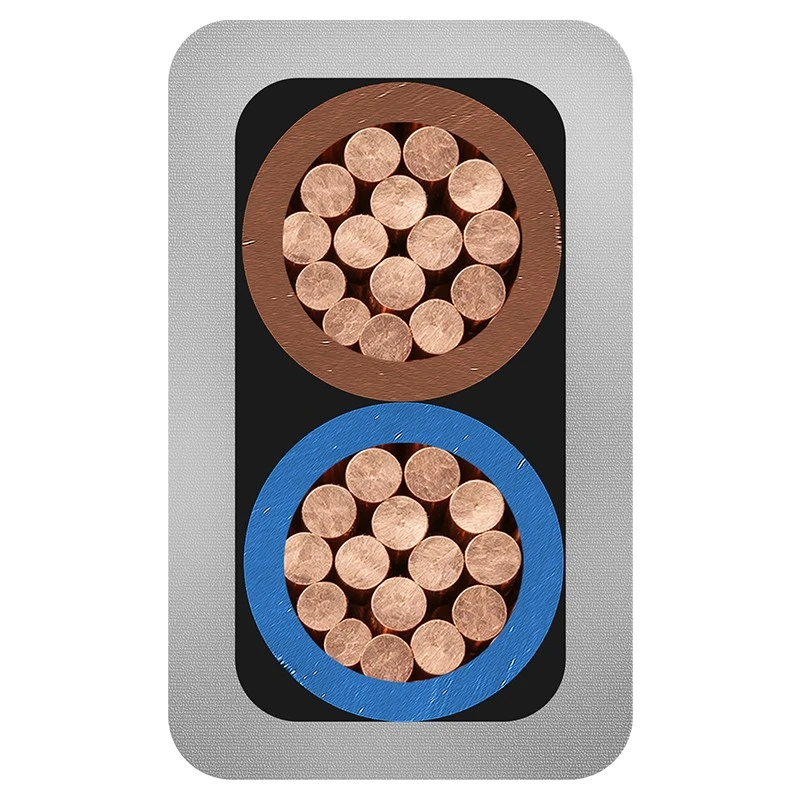

H05Z1Z1H2-F is an EU standard compliant flat low-smoke and halogen-free flexible wire. It has a rated voltage of 300/500V. The conductor is made of Class 5 ultra-fine stranded annealed bare copper, with excellent flexibility. The insulation is made of TI6 low-smoke and halogen-free mixture material, and the flat integrated sheath is TM7 low-smoke and halogen-free material. The long-term allowable working temperature is 70℃. The cable is formed in a single flat shape, featuring flame-retardant properties. When burning, it will not release halogen-containing toxic gases, and the smoke transparency is good, with a low release amount of corrosive gases.

Application

* Indoor Electrical Power Connection Cables (Main Function)

Connect household / office appliances to the fixed mains power supply. Flat structure suitable for narrow spaces: baseboard, narrow cable troughs, gaps between furniture, wiring within wall panels.

Refrigerators, washing machines, dishwashers (can be used in indoor damp areas)

Kitchen small appliances, heating devices (condition: cables must not come into direct contact with heating elements / heat radiation)

Office equipment, small instruments, lighting accessory connection cables

* Public Indoor Areas with High Population (Advantages of Low Smoke and Halogen-Free)

Less smoke, no halogen, low corrosive gases during fire, suitable for buildings with fire safety requirements: office buildings, hospitals, schools, hotel indoor equipment wiring.

* Temporary Short-term Outdoor Use

Allow for short-term temporary outdoor use, not suitable for long-term exposure to sun and rain.

Product Feature

Rated voltage	300/500V
Conductor	Class 5 Multi-strand Soft Braided Bare Copper Conductor
Insulation	LSZH polyolefin
Sheath	LSZH polyolefin
Shape	Flat
Standard	EN 50525-2-11:2011
Normal working temperature	70°C

Packing & Delivery

We deliver bespoke professional packaging solutions encompassing standard cable reels, cartons and pallets to guarantee seamless product shipment. Every individual roll is affixed with complete specification markings to facilitate straightforward installation and application, while custom-tailored packaging options are offered to accommodate both ocean and air freight requirements.

FAQ

Q: What does the "H" in the cable model represent?

A: The "H" stands for Harmonized cable, which complies with the unified European coordination standards.

Q: What does the "F" suffix stand for?

A: "F" stands for flexible soft wire, which can withstand repeated bending and movement.

Q: What is the main difference between PVC sheath and LSZH sheath?

A: PVC sheath releases halogen-containing corrosive smoke when burning; while LSZH sheath is free of halogens and has low smoke and low corrosion.

Q: What part does the 70℃ long-term working temperature of the cable refer to?

A: This is the maximum allowable temperature for the conductor, not the surface temperature of the sheath.

Q: What is the unit for cable insulation resistance?

A: MΩ・km. The longer the length, the lower the insulation resistance value.
