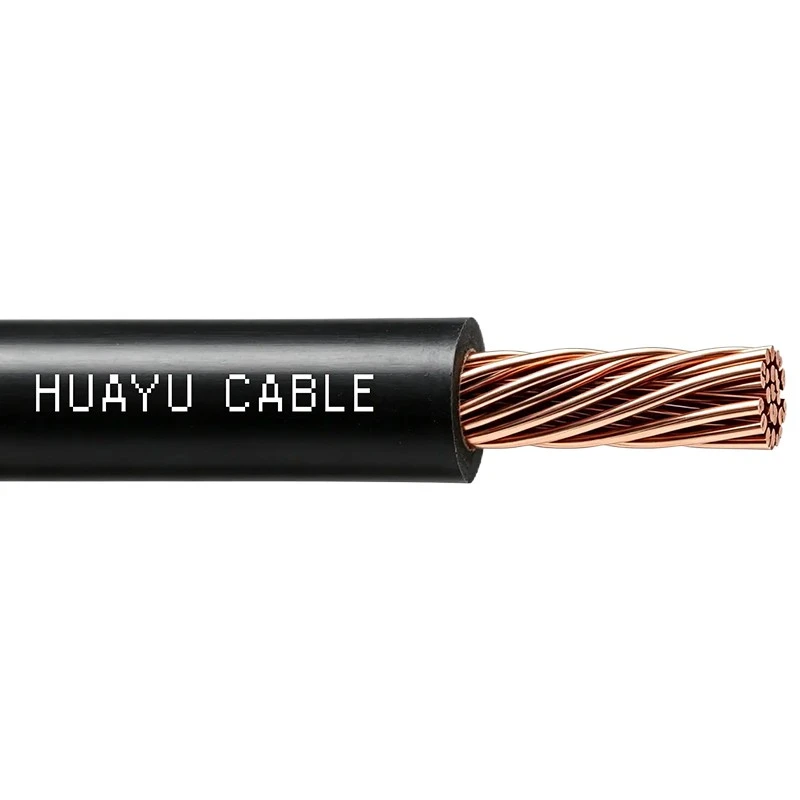

Low Voltage H05V-K PVC Insulated Flexible Wire

The H05V-K cable is a single-core flexible PVC-insulated wire under the EU's HAR harmonized standard, featuring Class 5 fine-stranded annealed copper conductor, offering excellent flexibility and ideal for wiring and bending in confined spaces. With a rated voltage of 300/500 V, it is specifically designed for low-voltage control circuits and weak current signal transmission.

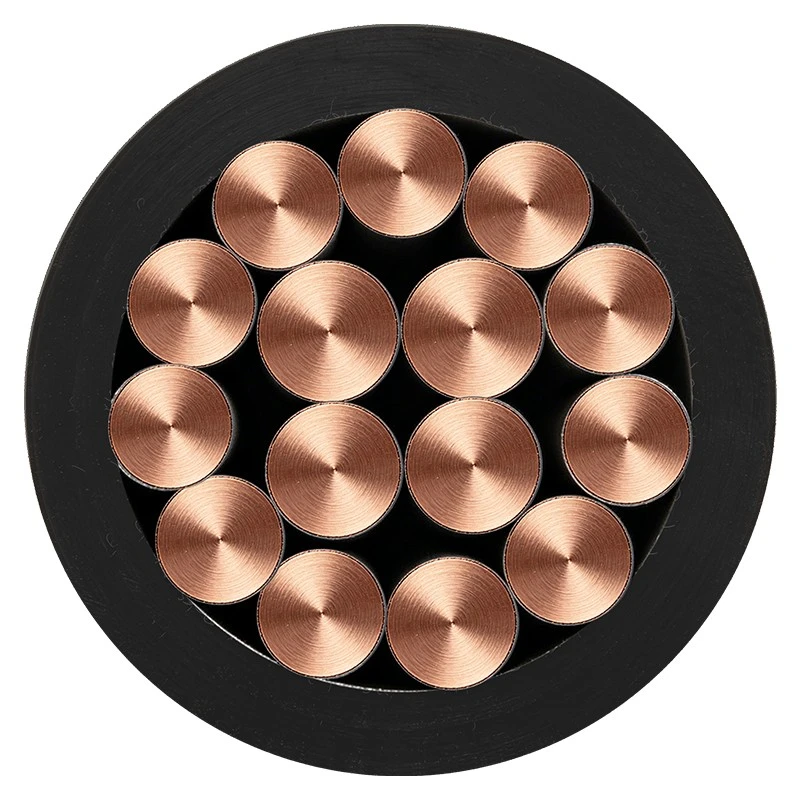

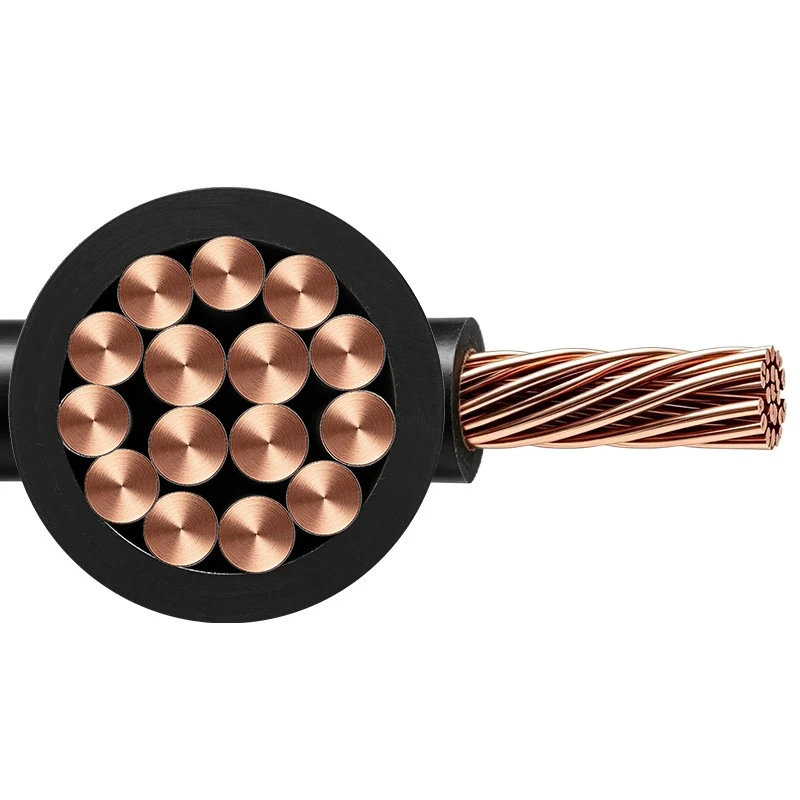

This cable is made with fine-stranded copper conductors to achieve excellent flexibility. It can be repeatedly bent without mechanical fatigue. The PVC insulation is resistant to industrial media such as oil, acid and alkali, in line with the IEC 60332-1-2 flame-retardant and self-extinguishing standard. Moreover, it has a compact and lightweight structure, making it suitable for low-power and signal line wiring in the narrow spaces of precision equipment and control cabinets.

*Industrial control cabinet: Internal wiring of PLC, relays, contactors, sensors, push-button switches, etc.

*Internal wiring of equipment: Internal connections of small household appliances, office equipment, lighting devices and control equipment.

*Low power and signal transmission: Alarm systems, doorbells, intercom systems and other low-voltage signal lines.

*Budget-sensitive projects: Under the condition of meeting the rated voltage of 300/500V, H05V-K has high cost-effectiveness.
