Yangzhou Huayu Cable Co., Ltd. is one of the leading manufacturers and suppliers of low voltage h05v2-r pvc insulated flexible wire in China. If you're going to wholesale CE approved low voltage h05v2-r pvc insulated flexible wire, welcome to get free sample from our factory. All customized cables are with high quality and low price.

Product Description

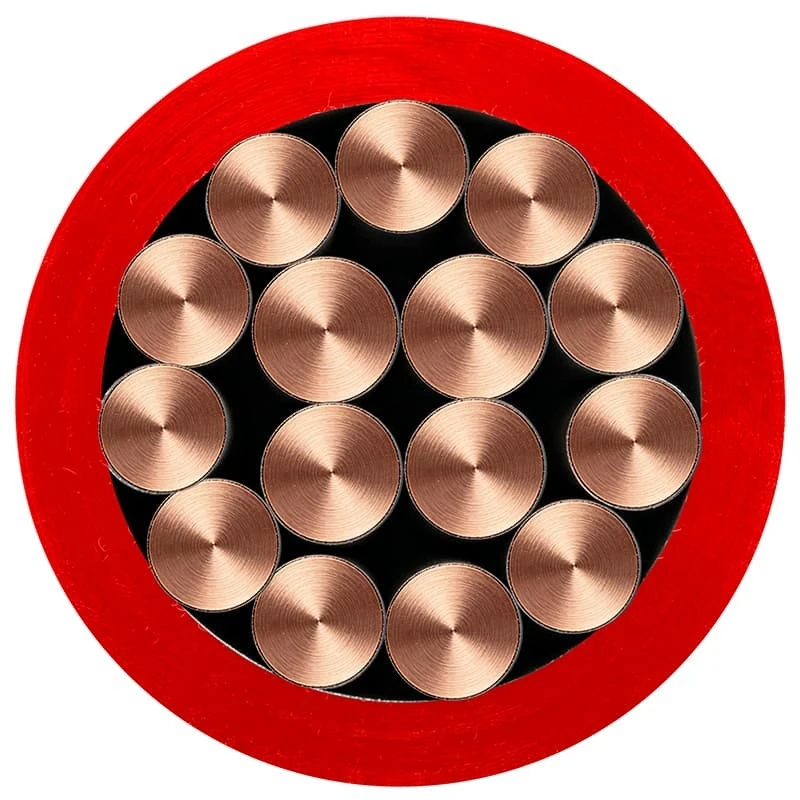

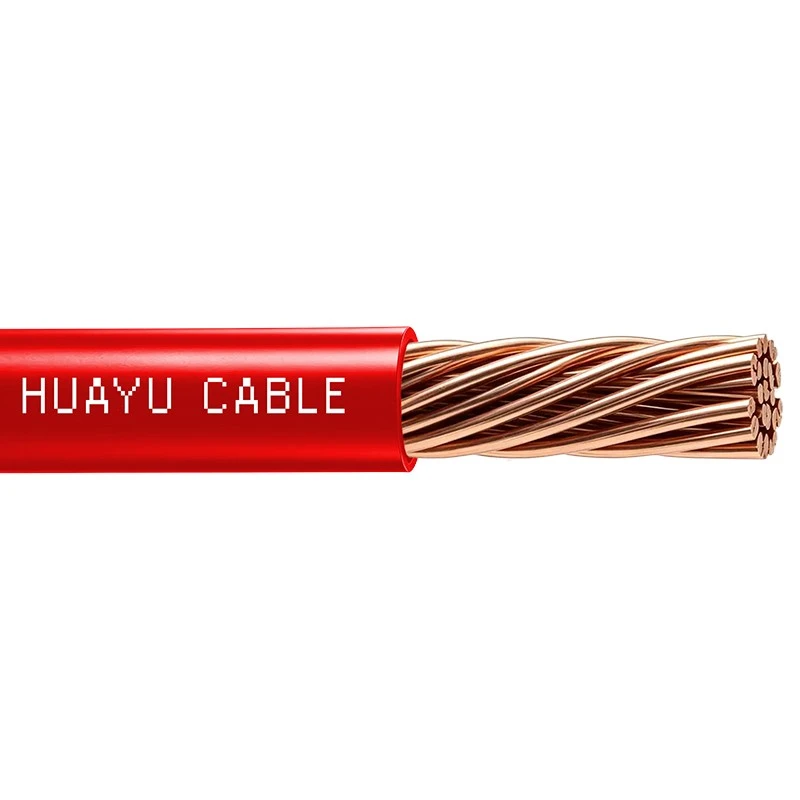

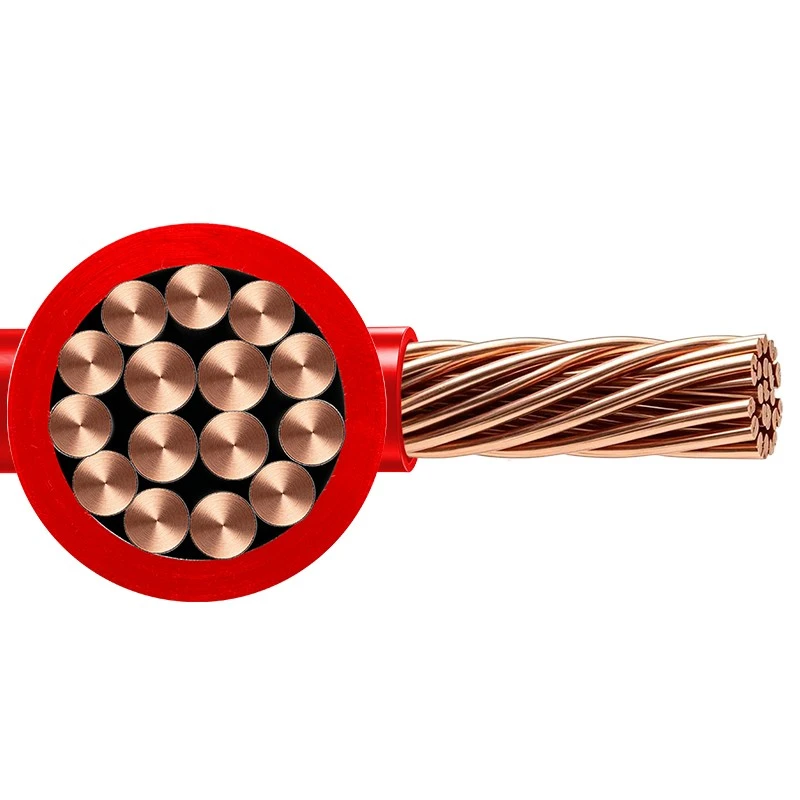

This product is specially designed for internal equipment wiring and fixed building wiring within conduits, addressing the insufficient temperature resistance of conventional 70 °C PVC cables. Compared with solid-conductor H05V2-R, class 2 stranded conductor brings easier pulling during cable installation inside conduits.

Application

Application scenarios for H05V2-R cable: Fixed indoor wiring in conduits/trunking for residential & commercial buildings with high ambient temperature. Fixed internal wiring for control cabinets, distribution boxes and equipment enclosures; for fixed installation only, not for frequent flexible movement. Lighting, switch and socket circuit wiring in poorly-dissipated heat-accumulating sections, as replacement for standard 70℃ PVC solid cables for better thermal resistance. Preferred for long-distance conduit pulling projects.

Product Feature

Rated voltage	300/500V
Conductor	High-quality oxygen-free copper
Insulation	temperature-resistant PVC
Sheath	TI3 - PVC (if applicable)
Standard	EN 50525-2:2011
Operating temperature	≤90°C
Short circuit (maximum duration: 5 seconds)	Not exceeding 160°C

Packing & Delivery

We provide professional packaging solutions, including standard cable reels, cartons or pallets, to ensure smooth product delivery. Each roll is labeled with full specification details for easy installation and use. Customized packaging is available for both sea and air transportation.

FAQ

Q: Unsuitable applications?

A: Non-applicable conditions

Not for exposed surface mounting or direct burial; conduit/trunking protection is mandatory.
Not for mobile or flexing cabling.
Not suitable for oil-polluted or heavy chemical-corrosion environments.
Outdoor exposed installation is prohibited.

Q: What is the service life of PVC insulated flexible wire?

A: With compliant installation and controlled temperature rise, the expected service life is generally 20-30 years; regular inspection for insulation embrittlement is required.

Q: What is the minimum bending radius for PVC insulated flexible wire?

A: For fixed installation, the minimum bending radius is 4-10 times the cable outer diameter (common standards are 4d or 10d, subject to manufacturer's specification; design based on the conservative value of 10d is recommended).
