Name: China Low Voltage H05V-R PVC Insulated Flexible Wire Manufacturers Suppliers Factory - Huayu Cable
Brand: Huayu Cable
SKU: 313826841

Yangzhou Huayu Cable Co., Ltd. is one of the leading manufacturers and suppliers of low voltage h05v-r pvc insulated flexible wire in China. If you're going to wholesale CE approved low voltage h05v-r pvc insulated flexible wire, welcome to get free sample from our factory. All customized cables are with high quality and low price.

Product Description

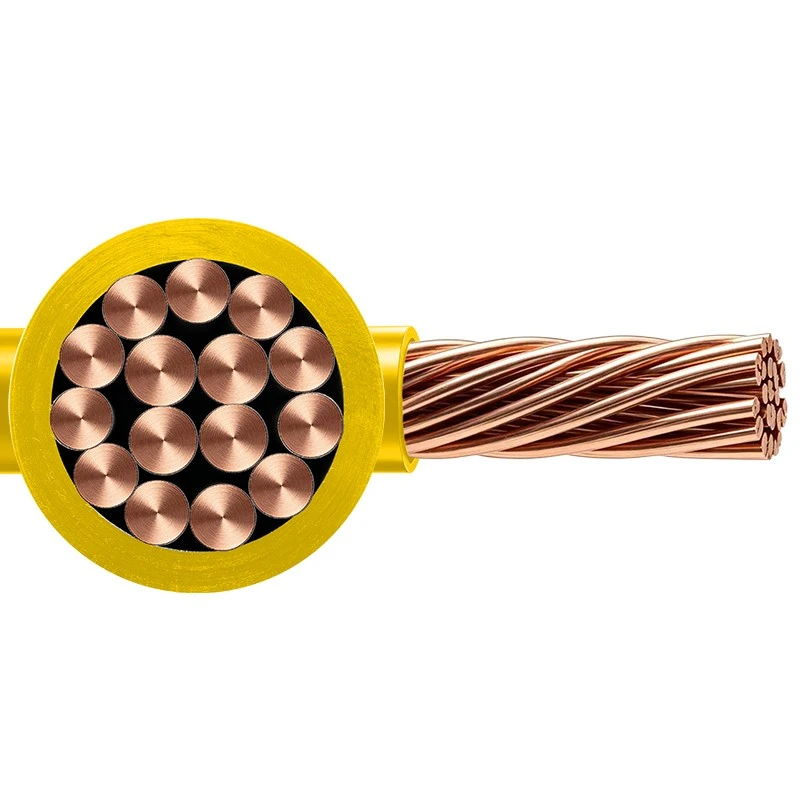

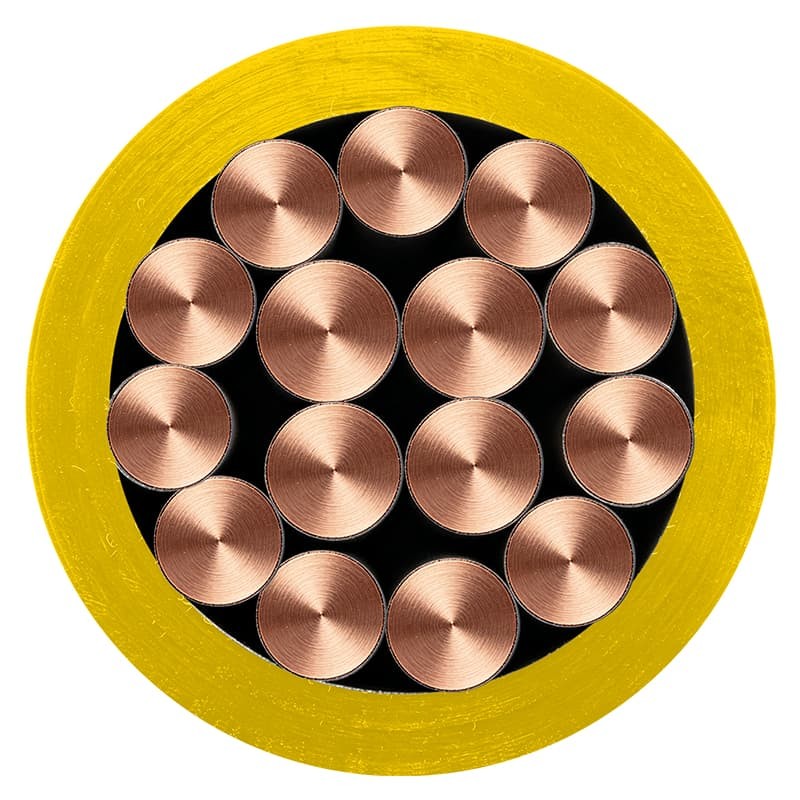

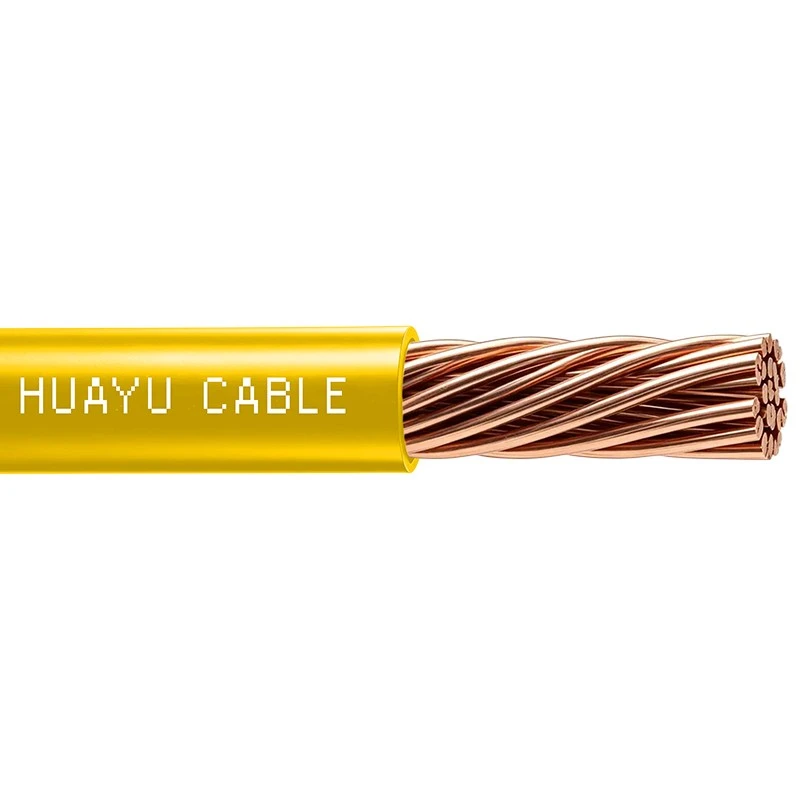

H05V-R is a standard single-core wire with a rated voltage of 300/500V, complying with the European standard. It features a multi-strand twisted soft copper conductor, PVC insulation, and no sheath. The conductor has good flexibility and can withstand moderate bending. It is suitable for dry and protected environments and is used for wiring inside control cabinets, distribution boxes, and electrical equipment. It supports conduit and trough fixed laying and must not be used outdoors or in unguarded and humid areas. It is mainly used for internal wiring of electromechanical equipment.

Application

*Internal wiring of control cabinets, distribution boxes, and switch panels

*Internal wiring of various electromechanical equipment and electrical devices

*Fixed wiring in conduits and troughs (in dry and protected indoor environments)

*Lighting circuit internal wiring

Restrictions: Limited to dry and protected areas. Cannot be exposed outdoors. Cannot be directly used in humid environments. Only for fixed laying. Not suitable for frequent mobile use.

Product Feature

Rated voltage	300/500V
Conductor	Bare Copper
Insulation	Polyvinyl Chloride(PVC) Insulation
Standard	EN 50525-2-11:2011
Normal working temperature	70°C

Packing & Delivery

We deliver bespoke professional packaging solutions encompassing standard cable reels, cartons and pallets to guarantee seamless product shipment. Every individual roll is affixed with complete specification markings to facilitate straightforward installation and application, while custom-tailored packaging options are offered to accommodate both ocean and air freight requirements.

FAQ

Q: Does H05V-R have an outer sheath?

A: No, it is a single-core unshielded wire with only a PVC insulation layer. It must be used within a protective structure such as a conduit or cabinet.

Q: Do we have CE certification?

A:Yes, For the European market, CE certification is required to meet the European standards.

Q: What is the operating temperature of H05V-R?

A: The long-term working temperature is 70℃.

Q: What are the differences between H05V-R and H05V-U?

A: H05V-R is a multi-strand soft conductor, which is convenient for bending and wiring; H05V-U is a single-strand hard conductor. Both have the same voltage and insulation material.

Q:If you need the product catalogue, could you provide it?

A: If your company requires it, we can offer the product catalogue. We are looking forward to receiving your further information. If you have any questions, please feel free to contact us at any time.
