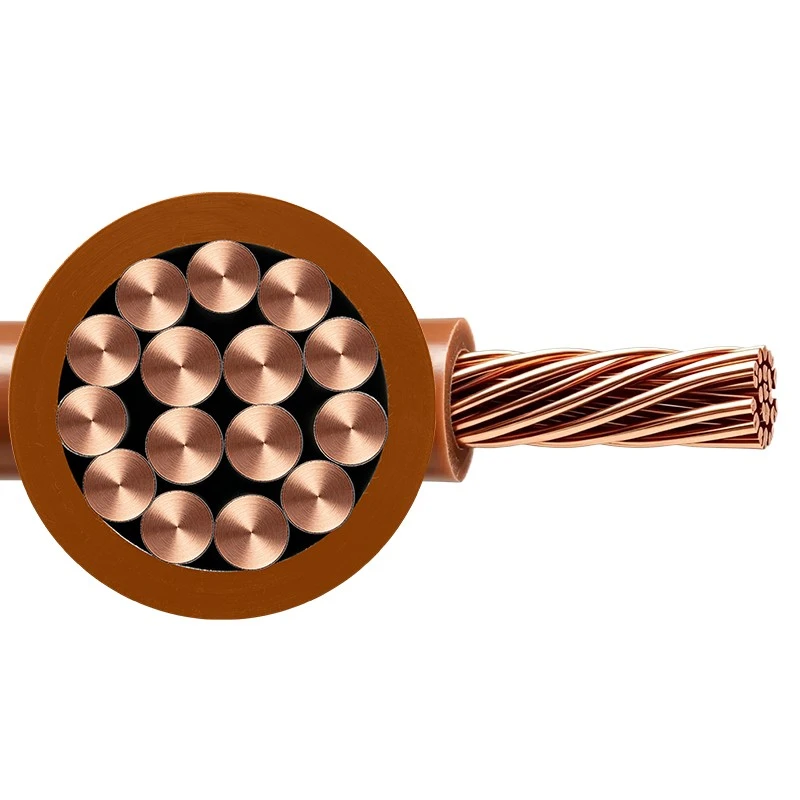

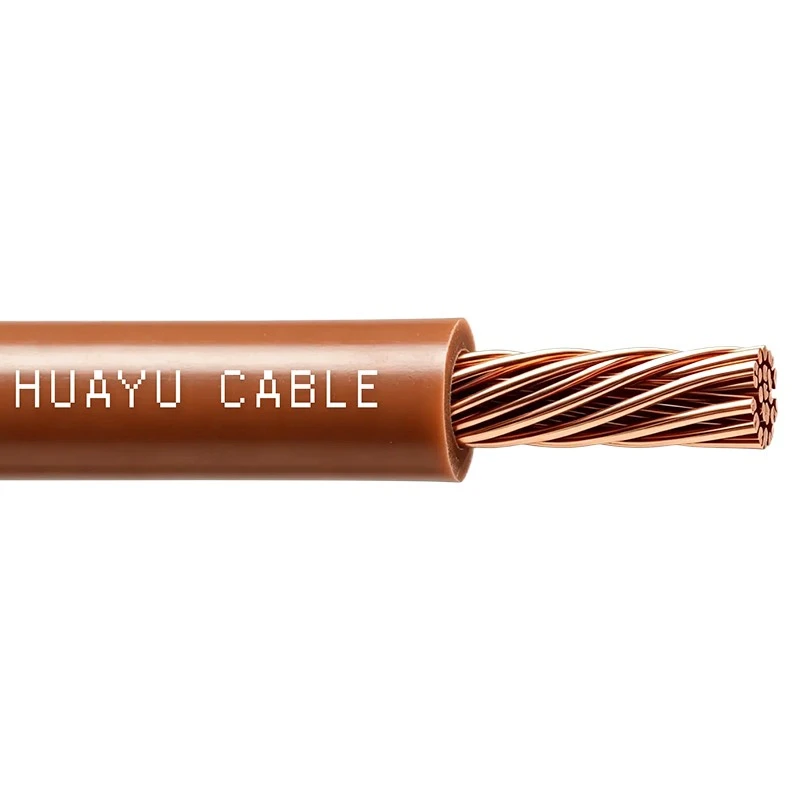

Low Voltage H05V2-K PVC Insulated Flexible Wire

Send Inquiry
Low Voltage H05V2-K PVC Insulated Flexible Wire
Details
Application:
Compliant with HD 21.3 S3 / VDE 0281-7 / IEC 60227, the harmonized single-core heat-resistant flexible H05V2-K cable (H = harmonized European standard, 05 = 300/500V, V = PVC insulation, 2 = 90℃ heat-resistant modified PVC, K = IEC 60228 Class 5 highly flexible conductor) significantly reduces insulation failure and short-circuit risks caused by overloading, high temperature and frequent bending, serving as a reliable anti-short-circuit wiring solution.

Standard:
European Standard: EN 50525-2-11:2011

Construction:
Conductor: Annealed copper conductor
Insulation: PVC insulated
Category
Electric Wire
Share to

Yangzhou Huayu Cable Co., Ltd. is one of the leading manufacturers and suppliers of low voltage h05v2-k pvc insulated flexible wire in China. If you're going to wholesale CE approved low voltage h05v2-k pvc insulated flexible wire, welcome to get free sample from our factory. All customized cables are with high quality and low price.



Product Description

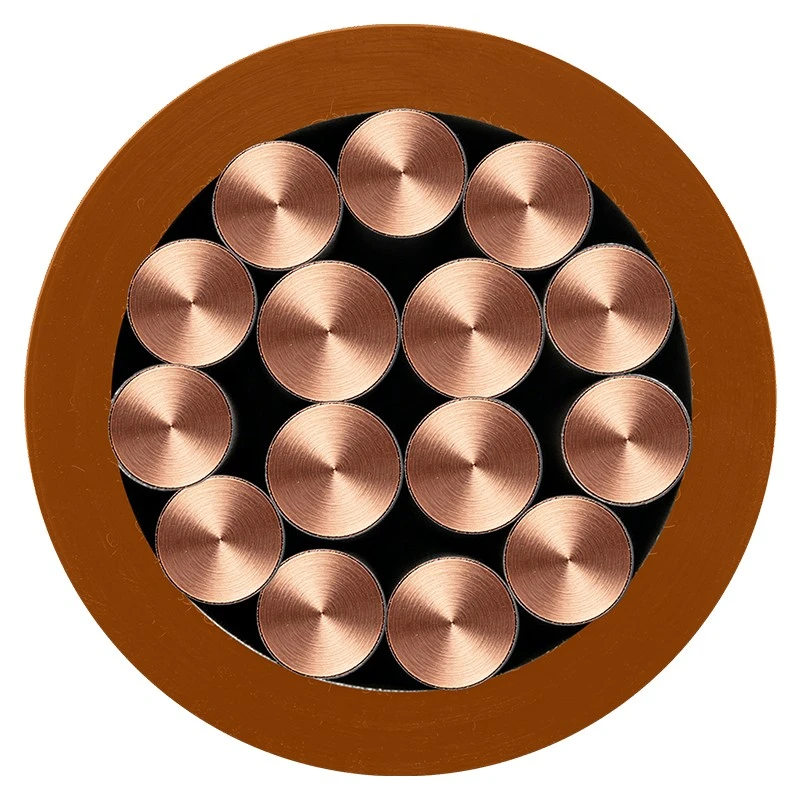

Featuring IEC 60228 Class 5 multi-stranded bare or tinned copper conductors and special heat-resistant PVC (Type TI3) insulation colour-coded to VDE 0293, the cable is certified to CE, VDE and RoHS (UL/CSA-compatible versions available from some manufacturers), with a rated voltage of 300/500V (450/750V for H07V2-K).



Application



  • Internal wiring of control cabinets and switch boxes
  • Connection wires for motors and transformers.
  • Internal connections for lighting/heating equipment
  • Laying inside protective hoses for mechanical equipment (excluding high-frequency dynamic drag-chain applications)
  • Original or replacement wires for repair of electrical equipment exported to Europe



Product Feature



Rated voltage 300/500V
Conductor High-quality oxygen-free copper
Insulation PVC(TI3)
Standard EN 50525-2:2011
Operating temperature

For fixed installation, the cable is rated -15℃ to +90℃ for long-term operation with static short-term withstand up to -10℃ to +105℃, while for moving installation it withstands -5℃ to +90℃ under frequent bending.
Short circuit (maximum duration: 5 seconds) Not exceeding 160°C



Packing & Delivery



We provide professional packaging solutions, including standard cable reels, cartons or pallets, to ensure smooth product delivery. Each roll is labeled with full specification details for easy installation and use. Customized packaging is available for both sea and air transportation.

product-738-647



FAQ



Q: Unsuitable applications?

A: H05V2-K must not be used for 380V line-to-line circuits (use H07V2-K 450/750V instead), frequent dynamic flexing, unprotected outdoor burial, direct contact with heat sources above 85℃, oily/corrosive atmospheres, phase-separated runs in metal conduit/tray, or as overhead/supporting lines, since without torsion-resistant sheath, waterproofing, UV, oil-chemical or tensile protection it risks core breakage, insulation cracking, eddy-current overheating and premature aging.

Q: What is the service life of PVC insulated flexible wire?

A: There is no unified national standard for service life. Under rated temperature (≤90℃), no mechanical stress and dry environment, the typical design life is 15-20 years. The actual service life is significantly affected by the cumulative temperature effect (Arrhenius model), bending cycles and environmental chemical corrosion.

Q: What is the minimum bending radius for PVC insulated flexible wire?

A: Fixed installation: 10 × outer diameter; Mobile installation: 15 × outer diameter (some manufacturers mark 12×, conservative design at 15× is recommended)
