Yangzhou Huayu Cable Co., Ltd. is one of the leading manufacturers and suppliers of low voltage h03vhy-pvc insulated flexible installation cable in China. If you're going to wholesale CE approved low voltage h03vhy-pvc insulated flexible installation cable, welcome to get free sample from our factory. All customized cables are with high quality and low price.
Product Description

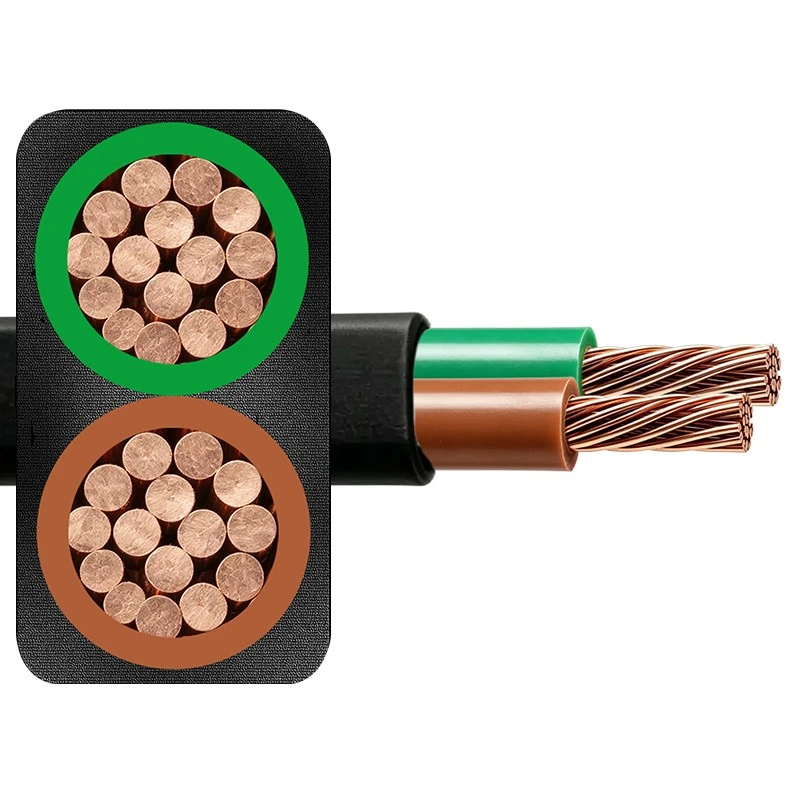

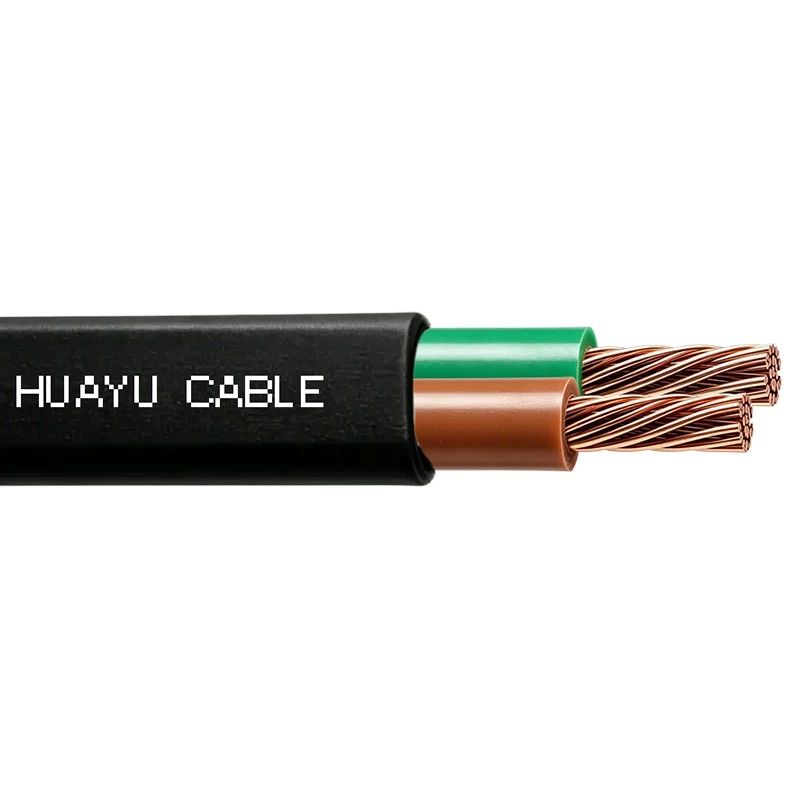

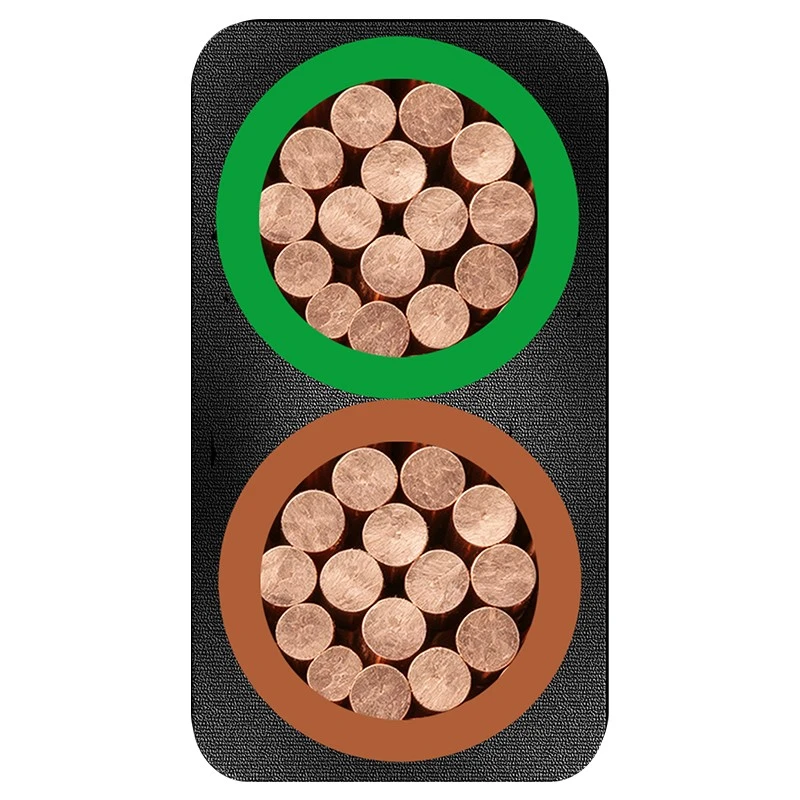

This product features stranded bare copper conductors complying with VDE 0295/IEC 60228 and cross-sectional area from 0.5mm² to 0.75mm². It adopts PVC TI1 polyvinyl chloride insulation with separately parallel cores and customizable insulation colours. The cable is lightweight and flexible, RoHS compliant, with flame retardant performance meeting IEC 60332.1.
Application
Suitable only for indoor dry environments with low mechanical stress: Power cords for small household appliances, table lamps, radios, clocks and other portable devices Internal wiring of office equipment and low-power lighting fixtures Low-voltage audio signal transmission (e.g. Hi-Fi speaker systems)
Product Feature
| Rated voltage | 300/300V |
| Conductor | High-quality oxygen-free copper |
| Insulation | PVC |
| Sheath | PVC (if applicable) |
| Standard | EN 50525-2-11:2011 |
| Normal working temperature | 40℃ |
| Short circuit (maximum duration: 5 seconds) | Not exceeding 160°C |
Packing & Delivery
We deliver bespoke professional packaging solutions encompassing standard cable reels, cartons and pallets to guarantee seamless product shipment. Every individual roll is affixed with complete specification markings to facilitate straightforward installation and application, while custom-tailored packaging options are offered to accommodate both ocean and air freight requirements.
